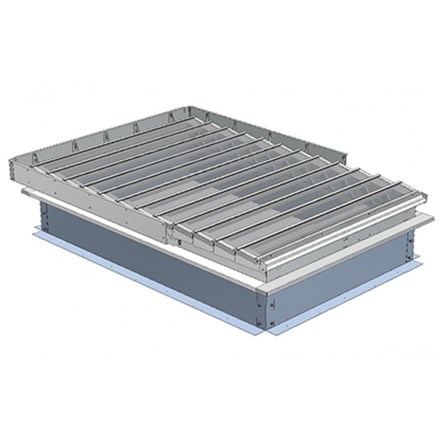

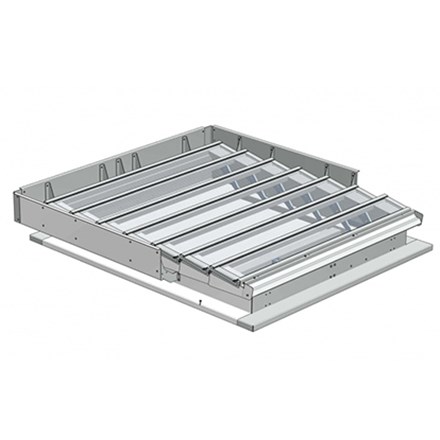

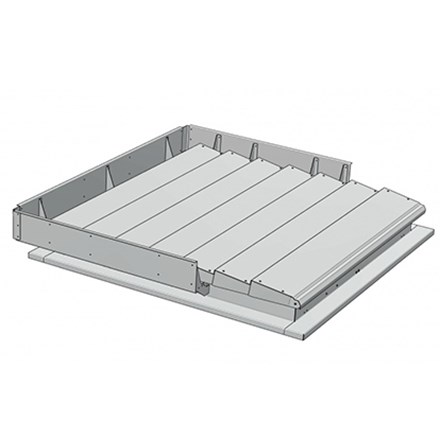

mcr LAM LOUVERED VENTS

DESCRIPTION

• mcr LAM louvered smoke vents are assembled
  to roof slope with various angles and facades

• due to its construction louvered vents are resistant to wind
  and can be installed to roofs and high building facades

• a wide range of dimensions allows for obtaining the required active
  surface venting or aeration

• wide scope of sizes: 80 cm x 50 cm ÷ 380 cm x 250 cm

• bottom part of the base has a circumferential flange of width 100 mm,
  through which the base is fitted to the roof structure

• upper part of base has shape enabling water runoff

• RAL palette colour selection for vent elements

• opening angle of the flap blades 90°

• classification as per Certificate of Conformity in accordance with EN 12101-2
  (CE Certificate)

DESIGN
Base

• height: 15 ÷ 25 cm

• material: steel, aluminum

• thermal insulation with mineral wool of 20 mm thickness

Filling

• multi-chamberpolycarbonate PCA 16 mm  or PCA 25 mm panel

• non-insulated  aluminum sheets (opaque filling - SO)

• aluminum sheet isolated with ISO panel of thickness 20 mm (opaque filling - SO+ISO*)
  * insulating material

Blades

• types: transparent, non-transparent

• structure: aluminum profiles, multi-chamber polycarbonate
  or aluminum insulated/ noninsulated sheet

Control system

• smoke exhaust: electric: (24 V-), pneumatic

• ventilation: electric (230~)
