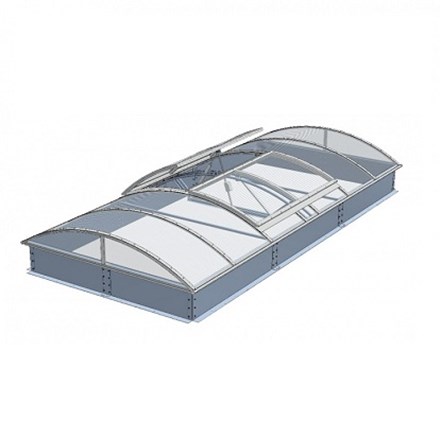

mcr PROLIGHT CONTINUOUS ROOFLIGHTS WITH INTEGRATED SMOKE VENTS

DESCRIPTION

• continous rooflights with span up to 6,0 m

• bottom part of base has a circumferential flange of standard width 70 mm,
  for installing on the roof structure

• skylight base stiffened with bracing at 1500 mm or 3000 mm

• wide scope of smoke vent sizes:
  –  single-leaf: 100 x 100 cm ÷ 200 x 250 cm
  –  double-leaf:  100 x 100 cm ÷ 250 x 250 cm

• optional wind - and/or inlet deflector for better aerodynamic performance

• products are delivered to construction site in elements and assemble in two steps:
  –  first step - base
  –  second step - top section

• RAL palette colour selection for elements

• CE marked rooflights according to EN 14963

• fire performance for external fire, class BROOF(t1) in accordance with PN-EN 13501-5

DESIGN
Base

• type: straight, ridge, slope, overlay, broken at the ridge

• height: 30 cm - 70 cm

• material: PVC, steel, aluminum

• prepared insulation of 50 mm thickness (possible modification)

• possible to apply on existing plinth

Filling

• multi-chamber polycarbonate

• multivariable single and multi-layer filling

Control system

• smoke exhaust: electric (24 V-), pneumatic

• ventilation: electric (24 V- / 230 V~)
